Handheld refractometer RHA 100

Ethylene Glycol antifreeze-84-32F concentration Propylene Glycol-60-32F Battery refractometer

Classification :

Handheld refractometer

Keywords: Handheld refractometer

E-mail

PRODUCT DETAILS

Ethylene Glycol antifreeze-84-32F concentration Propylene Glycol-60-32F Battery refractometer

Model:RHA-100 ATC

Scale / characteristic	Scale Range	Concentration	Resolution
Ethylene Glycol	-84° F-32° F	0-70%	5 ℉,1%
Propylene Glycol	-60° F-32° F	0-60%	5 ℉,1%
Battery	1.100-1.400sg		0.01sg

This optical refractometer has a scale in the range of Ethylene Glycol: -84° F-32° F , Propylene Glycol: -60° F-32° F, The reading resolution is 5 ℉. And battery fluid is 1.100-1.400sg. The reading resolution is 0.01sg.

Example (sugar): 100 grams of 25 %Bx aqueous solution contains 25 grams of sugar. In other words, there is 25 grams of sugar and 75 grams of water in 100 grams of sugar solution.

Measurement
The liquid measurement is very easy. Place a few drops of the liquid on the optical part of the refractometer, cover the prism (the liquid will spread more easily over the prism), look throught the eyepiece against the light (focus, if necessary) and you will be able to read the result value on the scale.
General technical parameters
reference temperature 20 Centigrade
ATC - automatic temperature compensation (compensation range 0 ~ 30 centigrade)
focus possibility
length ~ 175 mm
quality technical design

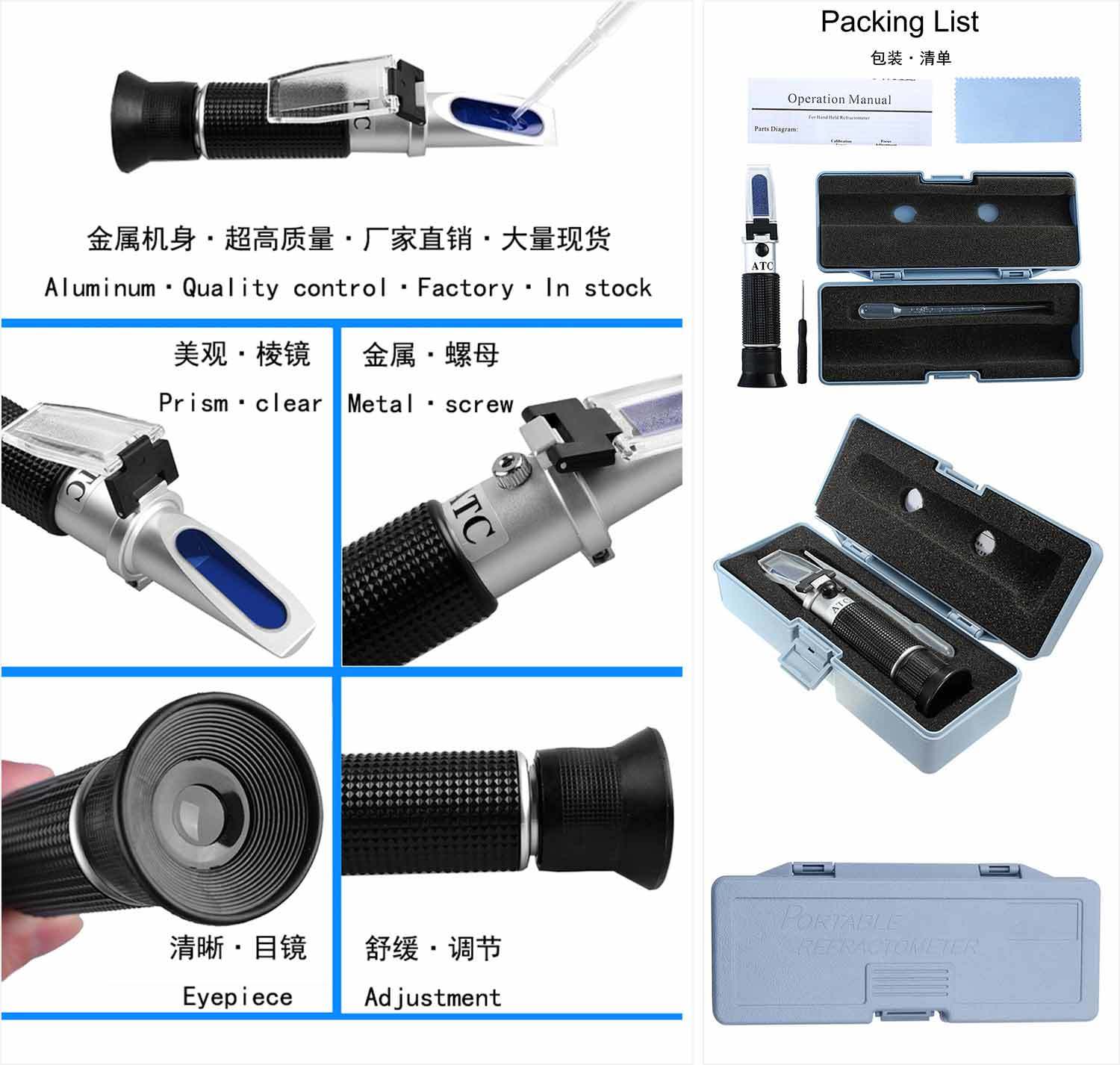

Content and equipment
a firm plastic case
a refractometer
a calibration prism
a calibration liquid
a cleaning cloth
a suction tube
a screw driver

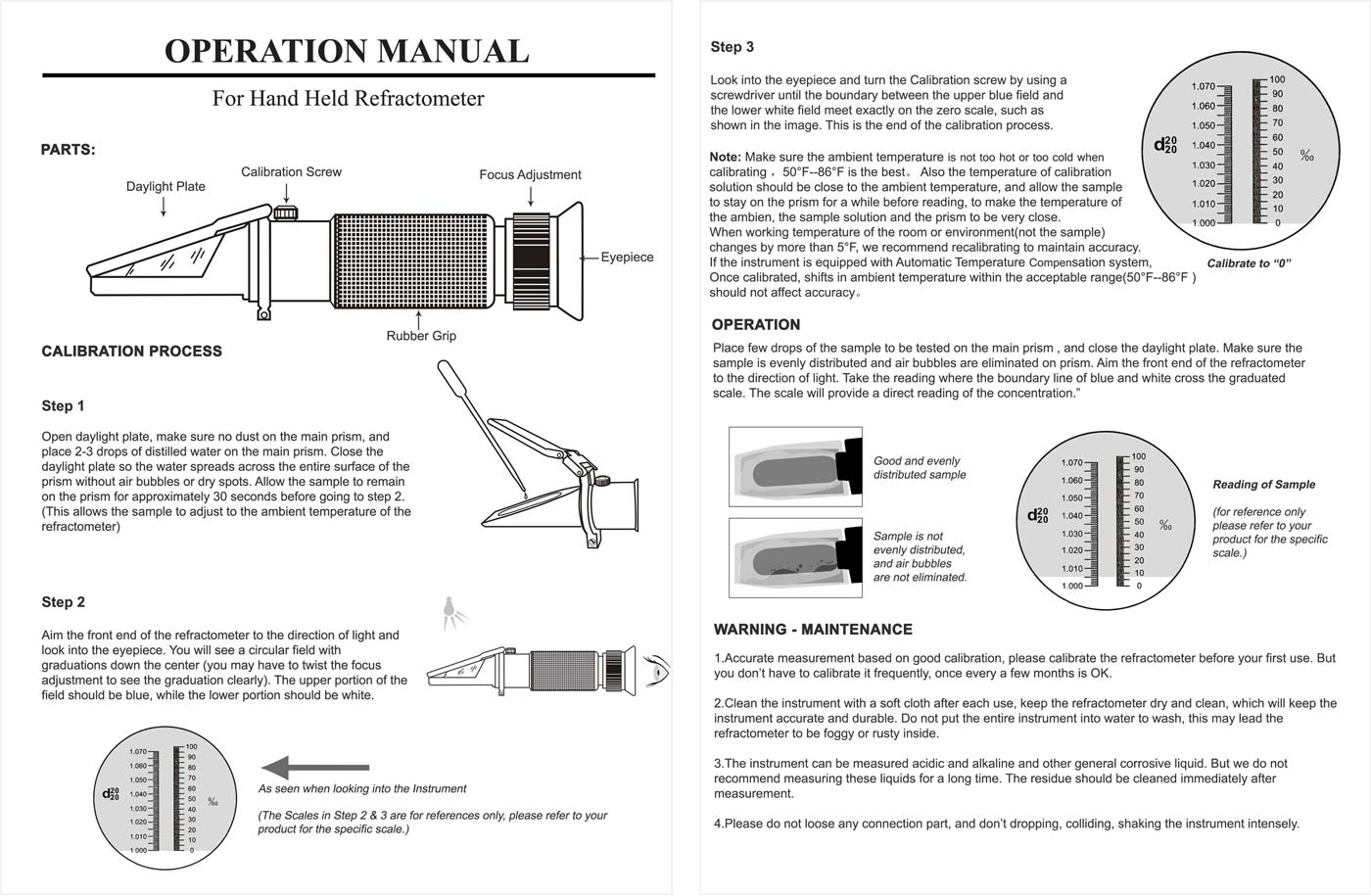

operating instructions

Handheld refractometer
